Specifications
Orbit25 mm
Load Bearing Capacity (Metric)32 kg
Speed Range25 to 525 rpm, ±1 rpm
Electrical Requirements230 V, 50 Hz
Voltage230 V
Temperature Range (Metric)4°C to 60°C
Amperage8 A
Holds4 L, 6 L Flask
Product TypeShaker
Load Bearing Capacity (English)71 lb.
Certifications/ComplianceCE, cUL, UL
Plug TypeCEE 7/7 plug
Temperature Range (English)41°F to 140°F, 39.2°F to 140°F
Temperature Resolution±0.1°C
Temperature Uniformity0.2°at 37°C (in Flask)
Frequency50 Hz
Depth (English) Interior21.1 in.
Depth (Metric) Interior53.6 cm
Dimensions (D x W x H) Interior21.1 x 34.3 x 18.5 in. (53.6 x 87.1 x 47 cm)
Dimensions (L x W x H)30 x 45 x 40.4 in. (76.2 x 114.3 x 102.6 cm)
Height (English)40.4 in.
Height (English) Interior18.5 in.
Height (Metric)102.6 cm
Height (Metric) Interior47 cm
Length (English)30 in.
Length (English) Platform29.5 in.
Length (Metric)76.2 cm
Length (Metric) Platform74.9 cm
Width (English)45 in.
Width (English) Interior34.3 in.
Width (Metric)114.3 cm
Width (Metric) Interior87.1 cm
Width (Metric) Platform45.7 cm
Shipping Weight (English)665 lb.
Shipping Weight (Metric)302 kg
Weight (English)635 lb.
Weight (Metric)288 kg
Controller TypeDigital

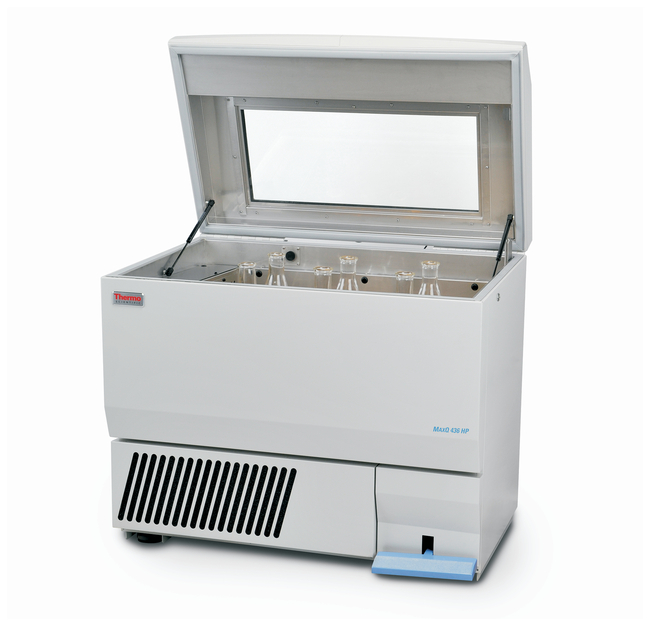

DescriptionIncubated/Refrigerated Floor-Model Console Orbital Shaker
ModelRefrigerated and Incubated Console Shakers
Humidity Range0% at/below 31°C (87.8°F)
Motor TypeDC brushless
Timer RangeContinuous or timed operation from 1 minute up to 199 hoursand 59 minutes
Unit SizeEA
