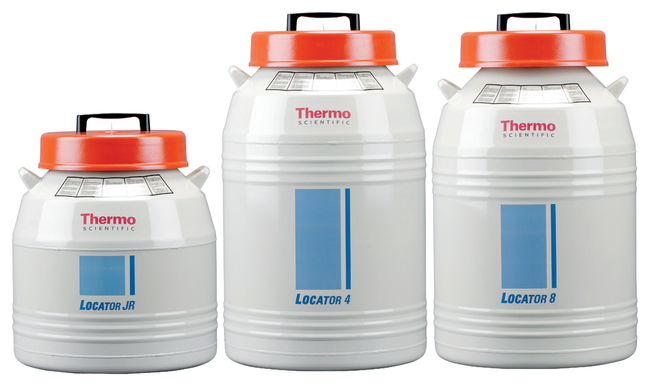

Locator™ Cryogenic Rack & Box Systems

Compact design minimizes space requirements while maximizing storage capacity. Suited for both manual and computerized inventory record-keeping methods. Super-insulated vessels have special, narrow-mouth design that conserves liquid nitrogen by minimizing evaporation.

• Outstanding temperature uniformity: samples are stored below -180°C, even when less than 2 in. (5cm) of liquid nitrogen remains in the vessel
• Ultrasonic Level Monitor safeguards irreplaceable samples with minimal liquid nitrogen evaporation and conduction
• Advanced vacuum insulation minimizes liquid nitrogen evaporation and reduces operating costs
• Optional monitor provides continuous LED readout of liquid nitrogen level; activates visual and audible alarms when level falls below safe range of approximately 1 in. (2.5cm)
• Optional alarm also alerts operator in the event of excessive liquid nitrogen loss
• Secure locking hasp prevents unauthorized entry

Locator Jr.

• Static holding time: 70 days
• 1600 (100/box)¹
• Evaporation rate: 0.85L/day

• Static holding time: 112 days
• 3600 (100/box)²
• Evaporation rate: 0.99L/day

• Static holding time: 185 days
• 1800 (25/box)³
• Evaporation rate: 0.6L/day
