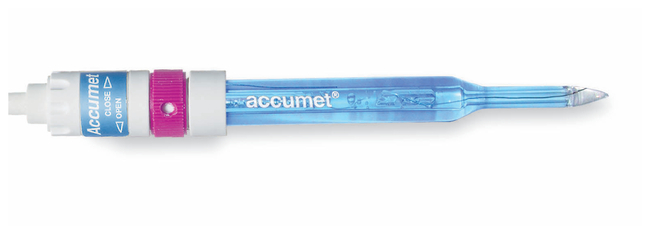

accuCap™ Capillary Junction pH Combination Electrodes - Glass Body, Gel-Filled Spear Tip - Mercury-Free

Better junction

• Single-pore capillary junction is ∽200 times larger than typical ceramic junctions
• Almost impossible to clog, even in difficult samples
• Increased electrolyte flow, greater contact between sample and reference, fast and stable readings

• Double junction design for enhanced performance
• Diffusion barrier separates silver chloride reservoir from reference electrolyte
• Permits use of silver-free electrolytes, prevents silver chloride loss from temperature-induced variations
• Result: an extremely stable reference potential, providing long electrode life

• Testing at German Federal Physical Technical Institute in Braunschweig determined this electrode design to be the most accurate laboratory electrode
• See Traceability of pH measurement by Petra Spitzer; ISBN 3-89429-877-4 or SSN 0947-7063

• Glass body and pH membrane
• Rugged spear tip is ideal for soft foods
• Polymer gel electrolyte provides reliable performance with difficult samples
