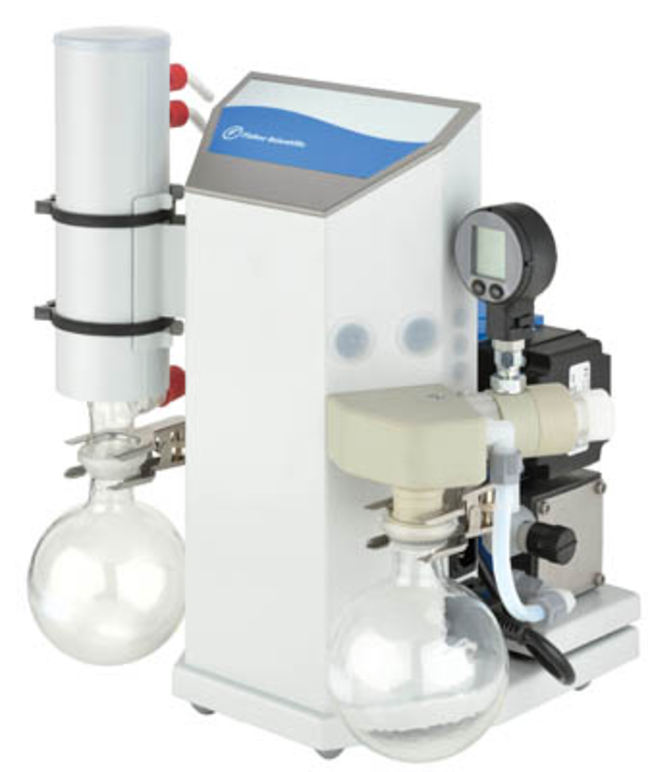

Vacuum System
Chemical duty oil-free diaphragm pump designed for chemical duty laboratory applications. Fisherbrand™ Vacuum System is for for evaporation and distillation in combination with rotary evaporators and gel dryers.
| Catalog Number | Pump Type |
|---|---|
| FKS15168886 | Vacuum System |
Catalog number FKS15168886
View Price:Sign InSign in to see your account pricing. Need an account? Register with us today.
Pump Type:
Vacuum System
- Perfect for evaporation and distillation in combination with rotary evaporators and gel dryers
- Dry running diaphragm pump and all components coming into contact with vapours are chemically resistant even against acidic, basic and organic solvents
- Pump heads are made from PTFE with carbon fibre reinforcing to handle corrosive and aggressive vapors without damage
- Pumping chambers are hermetically separated from drive space, ensuring extended life of mechanical parts
- Pumps use PFTE diaphragms sandwiched to strong non-wetted backing and PEEK valves, which are chemical resistant and are hard wearing when compared to elastomer valves
- Gas ballast valve helps to preserve pump performance when working with condensable vapors
- Addition of digital vacuum gauge and manual regulator allows user to adjust to vacuum level required for their application
- Inlet separator protects pump for ingress of liquids and particles and exhaust emission condenser protects lab air quality
Specifications
Max. Vacuum8 mbar
Electrical Requirements230 V 50/60 Hz motor with Schuko and UK power leads
Dimensions (L x W x H)36.0 x 31.0 x 44.5 cm (14.1 x 12 x 17.5 in.)
Weight (English)25.4 lb.
Weight (Metric)11.6 kg
Pump TypeVacuum System
Air Displacement16 L/min.
ApplicationsRotary evaporator, Gel dryer, Vacuum oven
Maximum Pressure<8 mbar
Unit SizeEA
