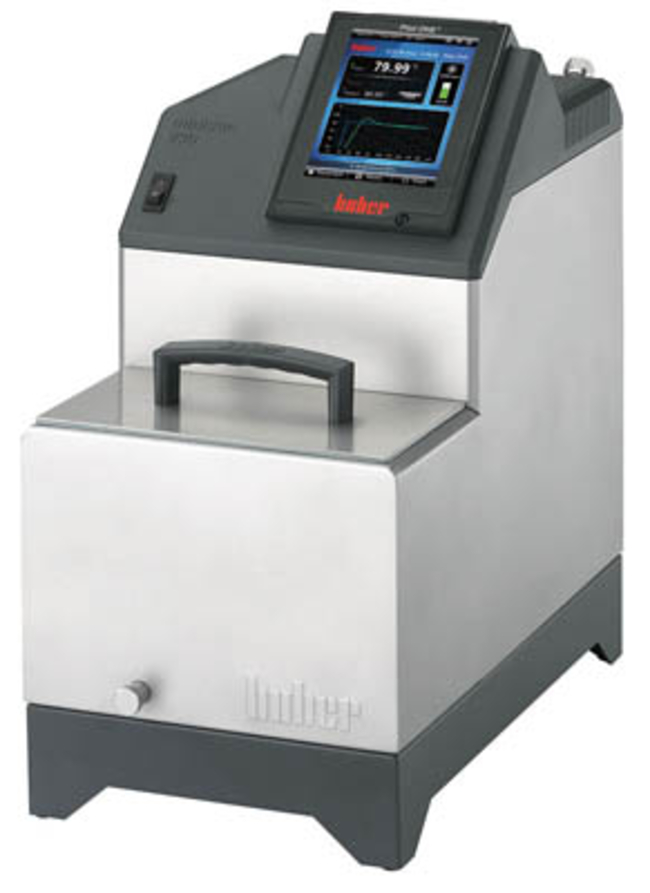

Ministat 230 Refrigerated Heating Bath Circulator

The smallest cooling circulators in the world, which can be placed in a laboratory fume cupboard or inside technical plant. Ministats are small, but offer sufficient performance for control of photometers, refractometers, viscometers, distillation apparatus, reaction vessels, mini-plants.

Catalog Number	Height (Metric)
FKS13351539	476 mm

Catalog number FKS13351539

View Price:

Height (Metric):

476 mm

Refrigerated heating circulator bath
Pilot ONE controller with Plug and Play technology
Precise temperature control
5.7 in. touchscreen and comfortable menu navigation
Overtemperature and low level protection
Safety class III/FL (DIN 12876)
Powerful pressure/suction pump
Programmer with calendar and clock functions
Five-point calibration
Pt100 sensor connection
Temperature range: -40°C to 200°C
Cooling capacity (20°C): 0.42kW
Cooling capacity (0°C): 0.38kW
Cooling capacity (-40°C): 0.05kW
Heating capacity: 1,6 - 2,1 kW
Pressure pump max.: 22L/min / 0.7bar
Suction pump max.: 16L/min / 0.4bar
Pump connection: M16 x 1 male

Specifications

Cooling Capacity100°C at 0.42 kW, 20°C at 0.42 kW, 0°C at 0.38°CkW, to 10°C at 0.33°CkW, to 20°C (at 0.25 kW)

Pump TypeCirculation

Temperature Range-40°C to +200°C

DisplayTFT

FeaturesTFT Touchscreen Display , E-grade Fuction, Integrated Programmer, USB Inferance, Ethernet Inferance, RS232 inferance, Plug and play control technology, Compatible with spycontrol,Easy control operating concept, Protection safety fuction, Natural refrigerant

Heating Capacity1.6 - 2.1 kW

ModelMinistat 230

Pump Capacity22 L / min; 0.7 bar Pressure, 16 L / min; 0.4 bar Suction

Safety Class3/FL

Temperature Stability±0.02°C

Warranty3 years for removable (Plug & Play) electronic controls, 2 years for refrigeration components, 1 year for mechanical and electrical components

Width (Metric)255 mm

Height (Metric)476 mm

Weight (Metric)37 kg

Voltage208/240 V

Frequency50/60 Hz

Unit SizePK
