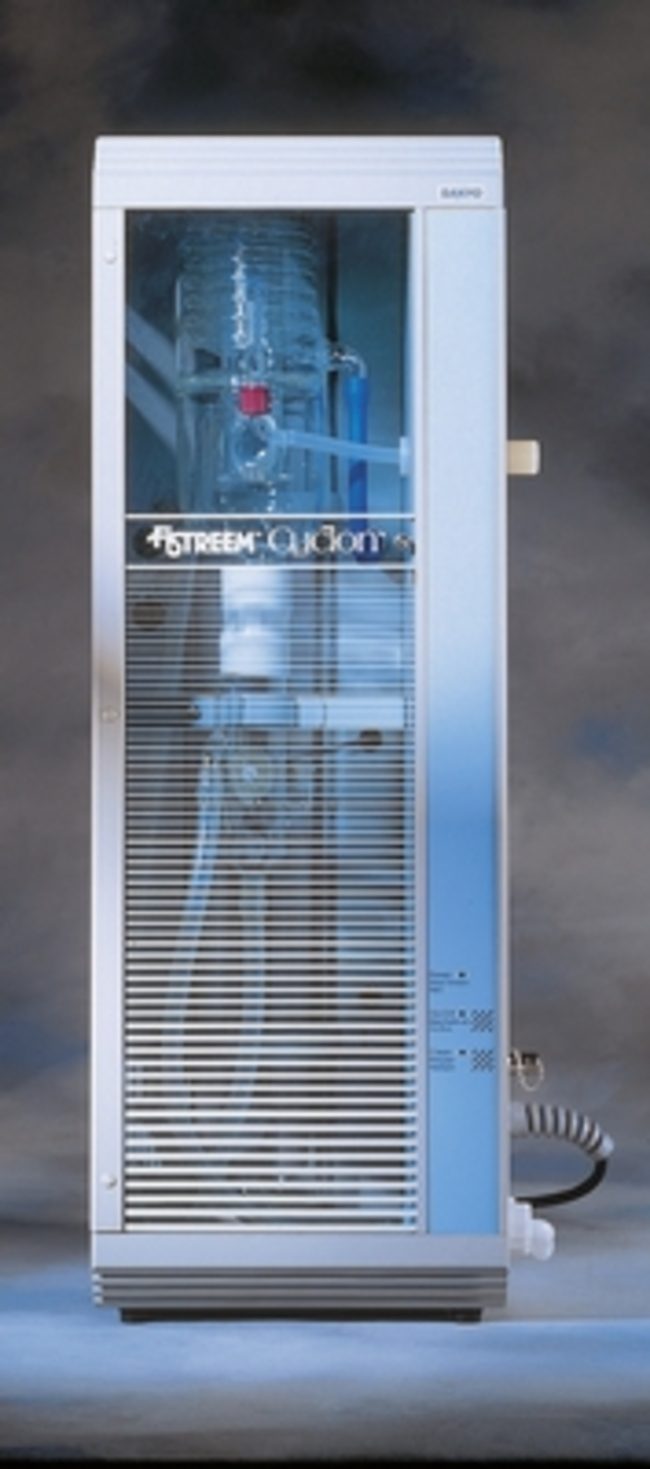

Cyclon Ultrapure Water Still

Highly suitable still for life science applications. Fistreem International™ Cyclon Ultrapure Water Still employs modern electronics and dual safety systems to produce high-quality, pyrogen-free distillate.

Catalog Number	Voltage	Dimensions (L x W x H)	Output Flow Rate
FKS13116010	240 V	300 x 380 x 750 mm	4 L/hr. Single Distilled

Catalog number FKS13116010

View Price:

Voltage:

240 V

Dimensions (L x W x H):

300 x 380 x 750 mm

Output Flow Rate:

4 L/hr. Single Distilled

Designed to surpass accepted purity and performance levels of traditional systems.
Of particular interest to users in life sciences, the pyrogen free distillate is of the very highest purity.
Unique condenser vapor trap creates a cyclonic effect eliminating any vapor borne droplets, thereby preventing carry-over in the distillate.
Outputs of 4L/hr and 8L/hr single distilled and 4L/hr double distilled are offered.
High quality borosilicate glassware houses very durable, silica sheathed, heating elements.
Protection of the heaters by thermistor control and a thermal fuse allows unattended safe operation.
Auto reservoir controls automatically switch off the still on a full reservoir.
Supplied ready for connection to a mains tap supply and will provide high quality pyrogen free water, even on the hardest feed water supplies. Cyclon deionizer is specially designed for use with the still.
Boiler contents are drained automatically on switch off to reduce scale formation rate.
May be fed with a suitable quality pre-treated water to reduce or eliminate the need for periodic cleaning.
- In this condition the condenser water (tap feed) is separated from the boiler water (treated feed) for economy.
- Supplied with pre-treated feed components that are easily fitted to allow treated water to be delivered directly to the boiler.
- In this condition controls ensure that the treated feed water is automatically supplied on demand to avoid any wastage.
- Suitable feed water should be deionized, reverse osmosis or distilled quality.
A low water pressure adapter is available for use with feed water pressure between 0.35bar and 0.70bar (5psi to 10psi).

Specifications

Dimensions (L x W x H)300 x 380 x 750 mm

Electrical Requirements240 V 3 kW

Voltage240 V

TypeCyvlon Still

Output Flow Rate4 L/hr. Single Distilled

Depth (Metric)380 mm

Height (Metric)750 mm

Width (Metric)300 mm

Unit SizeEA
