Omnifit™ Connectors with Valve

• Instant tube connection
• Chemically insert all PTFE body
• 50 psi pressure rating
• On-off manual valve operation

2- and 3-way Connectors with Valves

• Include Viton™ O-rings, 1/16 in. (1.5mm) PTFE cones, polypropylene caps with internal thread that accepts 1/4 in.-28 UNF fittings
• PTFE cone provides a flat bottom for the 1/4 in.-28 UNF fitting to give a leak-free connection
• 1.5mm bore size
• Accept tubing from 0.5 to 4mm O.D.
• OF001101 has an inline shut-off valve

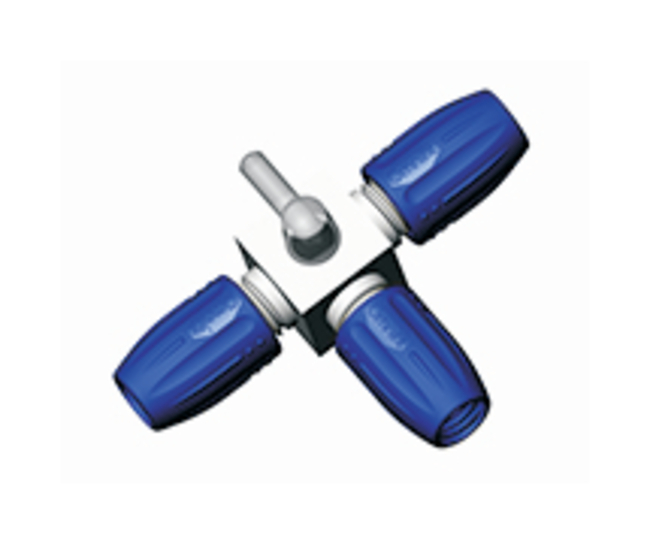

• OF001102 has individual shut-off valves for each of the three lines
• OF001109 has a diverting valve to allow connection of one line to either of the other two

Large-to-Small Universal Connector with Valve

• Large end has a Viton seal; small end is supplied with one large and two small Viton O-rings
• Cap at small end has internal thread that accepts 1/4 in.-28 UNF fittings
• Accepts 1 to 11mm O.D. tubing
• 1.5mm bore end
