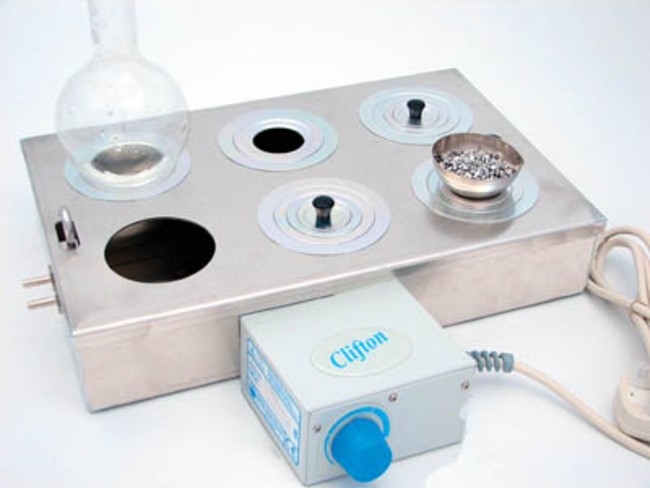

Clifton™ aluminum Boiling Bath
Regulates from a gentle simmer to a vigorous boil, fitted with concentric ringed lid to vary the hole size. Nickel Electro™ Clifton™ Aluminum Boiling Bath produces steam that provides an effective source of heat for samples that may be damaged by direct flame.
| Catalog Number | Model | Controller Type | Temperature Range |
|---|---|---|---|
| FKS12708878 | 1105 ER | Energy regulator controls the amount of boiling from a gentle simmer to vigorous boil | Simmer to boiling at 100°C |
Catalog number FKS12708878
View Price:Sign InSign in to see your account pricing. Need an account? Register with us today.
Model:
1105 ER
Controller Type:
Energy regulator controls the amount of boiling from a gentle simmer to vigorous boil
Temperature Range:
Simmer to boiling at 100°C
Rectangular, aluminum electrically heated, multi-place baths regulates from a gentle simmer to a vigorous boil, fitted with concentric ringed lid to vary the hole size.
The steam produced provides an effective source of heat for samples:
The steam produced provides an effective source of heat for samples:
- that may be otherwise thermally damaged by a naked flame.
- used for applications to distill/concentrate liquids, melt agar and other solids.
- metallurgical analysis, protein analysis and bacteriological examinations
- Features an integral constant level device to maintain constant water level during boiling and supplied with a set of rings to vary the diameter of aperture to accommodate different sizes of vessels of evaporating dishes and glassware, including round-bottom flasks.
- Fitted with a sheathed immersion element and a one shot thermal cut out for safety.
Specifications
Controller TypeEnergy regulator controls the amount of boiling from a gentle simmer to vigorous boil
DescriptionBoiling Bath
Capacity (Metric)3.12 L
Temperature RangeSimmer to boiling at 100°C
For Use With (Application)Distilling/Concentrating Liquids, Melting Agar and Other Solids, Metallurgical Analysis, Protein Ana
MaterialAluminum
Model1105 ER
ShapeRectangular
Warranty2 Years
Dimensions (D x W x H)200 x 400 x 90 mm
Width (Metric)400 mm
Height (Metric)90 mm
Depth (Metric)200 mm
Weight (Metric)3.8 kg
Voltage230 V
Wattage1000 W
Unit SizeEA
