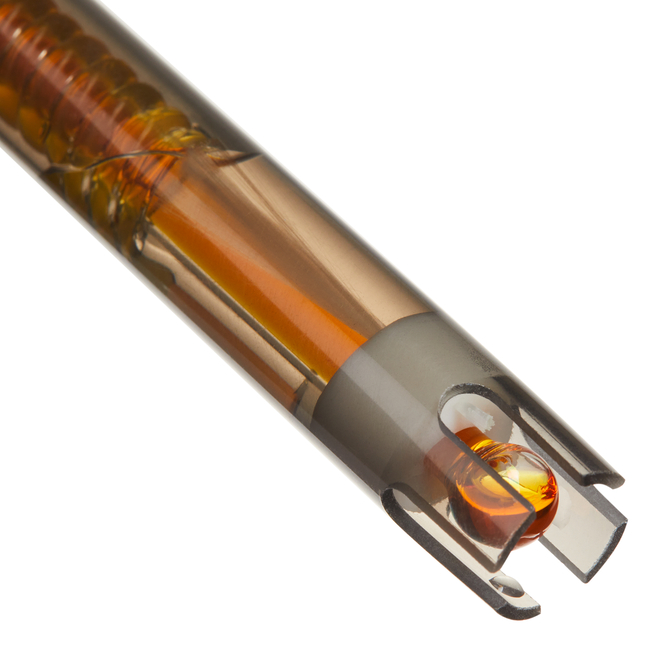

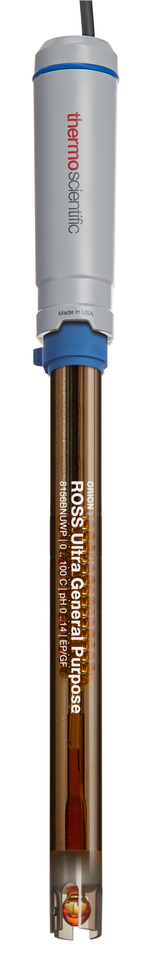

Orion™ ROSS Ultra™ Refillable Epoxy Bodied Combination pH Electrode

Confidently maneuver and measure in the field or on the plant floor with Orion refillable epoxy body electrodes.

Catalog Number	Connector Types
FKS11834554	BNC (Waterproof)

Catalog number FKS11834554

View Price:

Connector Types:

BNC (Waterproof)

Thermo Scientific™ Orion™ ROSS Refillable Electrodes provide optimum accuracy and stability while having the additional advantages of a double junction design. They are available in epoxy bodies for ruggedness and best suited for use in strong acids/bases, pH > 12 or pH < 2, food & cosmetic emulsions, pure water and slurries. Orion ROSS Ultra Refillable electrodes come with a two-year warranty.

Orion™ ROSS Ultra Electrodes offer the best stability and drift free measurements of all our ROSS electrodes while still providing the rapid accuracy and temperature response synonomous with this reference system These are compatible with samples containing organic compounds, Tris buffers, enzymes, proteins, heavy metals, and other compounds.

Solutions required

Electrode fill solution

810007 ROSS pH electrode fill solution, 5 x 60 mL bottles

Electrode storage solution

810001 ROSS pH electrode storage solution, 475 mL bottle

pH buffers

910168 pH 1.68 buffer, NIST traceable, 475 mL

910104 pH 4.01 buffer, color coded red, NIST traceable, 475 mL

910105 pH 5.00 buffer, color coded orange, NIST traceable, 475 mL

910686 pH 6.86 buffer, DIN standard, NIST traceable, 475 mL

910107 pH 7.00 buffer, color coded yellow, NIST traceable, 475 mL

910918 pH 9.18 buffer, DIN standard, NIST traceable, 475 mL

910110 pH 10.01 buffer, color coded blue, NIST traceable, 475 mL

910112 pH 12.46 buffer, NIST traceable, 475 mL

810199 All-in-One ROSS pH buffer kit, includes pH 4.01, 7.00 and 10.01 buffers, 475ml each ROSS pH
electrode storage solution, 475 ml, pH electrode cleaning solution C, 30 ml and 12 mm electrode
storage bottle

pH cleaning solution kit

900020 Cleaning solution A and C, 30 ml each. B and D, 60 ml each

Items included with

810007 ROSS pH electrode fill solution 60 mL 1 bottle

Warranty period

24 months from date of purchase

Specifications

DescriptionGeneral purpose epoxy body combination electrode; 120 x 12mm

Connector TypesBNC (Waterproof)

JunctionGlass Fiber

MaterialEpoxy Body

pH Range0 to 14

Temperature (Metric) Operating0°C to 100°C

TypepH Electrode

Filling Solution Type3M KCl

Internal ReferenceROSS

Precision0.01

Temperature (English) Operating32°F to 212°F

Warranty2 Years

Length (English) Cable39 in.

Length (Metric) Cable1 m

Unit SizeEA
