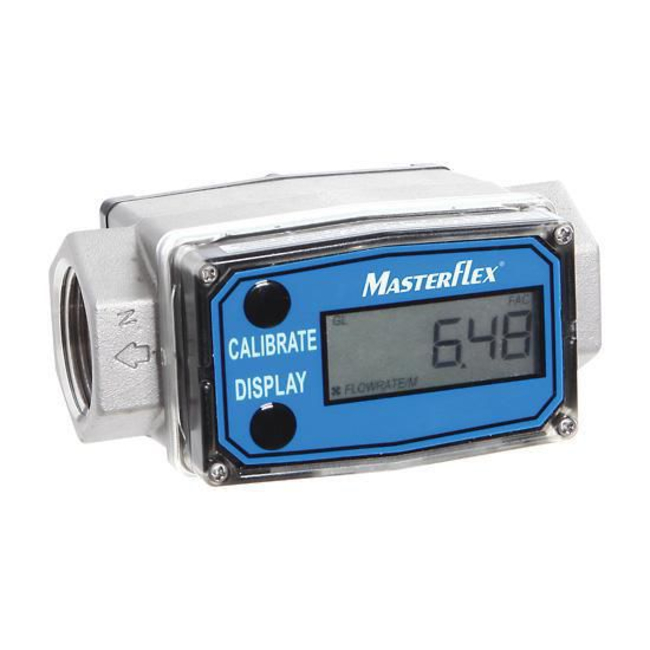

G2 Heavy-Duty Turbine Flowmeter/Totalizer

Name: G2 Heavy-Duty Turbine Flowmeter/Totalizer
SKU: FKS11767238

Designed to handle most basic industrial flow metering applications. Cole-Parmer™ G2 Heavy-Duty Turbine Flowmeter/Totalizer features two totalizers allow for process or period-specific volume monitoring. Sanitary units are perfect for micro-brewing and wine making processes.

Catalog number FKS11767238

View Price:

Battery-powered to eliminate the need for expensive wiring
Displays flow rate and accumulated flow in GPM or LPM
NEMA enclosure is suitable for indoor/outdoor use in dusty, dirty and wet environments
Compact yet robust design ideal for use in manufacturing, pilot-plant or quality control areas
All flowmeters measure linearly across a range and record a cumulative volume plus a resettable volume
Factory-calibrated using water but can store 2 application-specific K-factors determined in-process
To conserve power, the six-digit display automatically turns on with flow and then turns off four minutes after flow ceases
Wetted components are 316 SS or aluminum housing, PVDF rotor and supports, tungsten carbide shaft, 316 SS retainers, and ceramic bearings
The internal parts are simple to replace for easy maintenance
Meters operate on two lithium batteries
Remote installation of the flowmeter body is possible using the optional remote installation kit (order separately).
Replacement battery kits, output modules and calibration containers available

Specifications

Accuracy±2%

Airflow Rate1 to 10 GPM

Certifications/ComplianceEnclosure is NEMA 4 for Class I, Division I environments

For Use With (Application)Basic industrial flow metering applications

Internal Part MaterialPVDF rotor and supports, Tungsten Carbide shaft, Stainless Steel (316) retainers, and ceramic bearings

Repeatability±0.1%

Temperature (English)Up to 60°F

Temperature (Metric)140°C max.

Unit SizeEA
