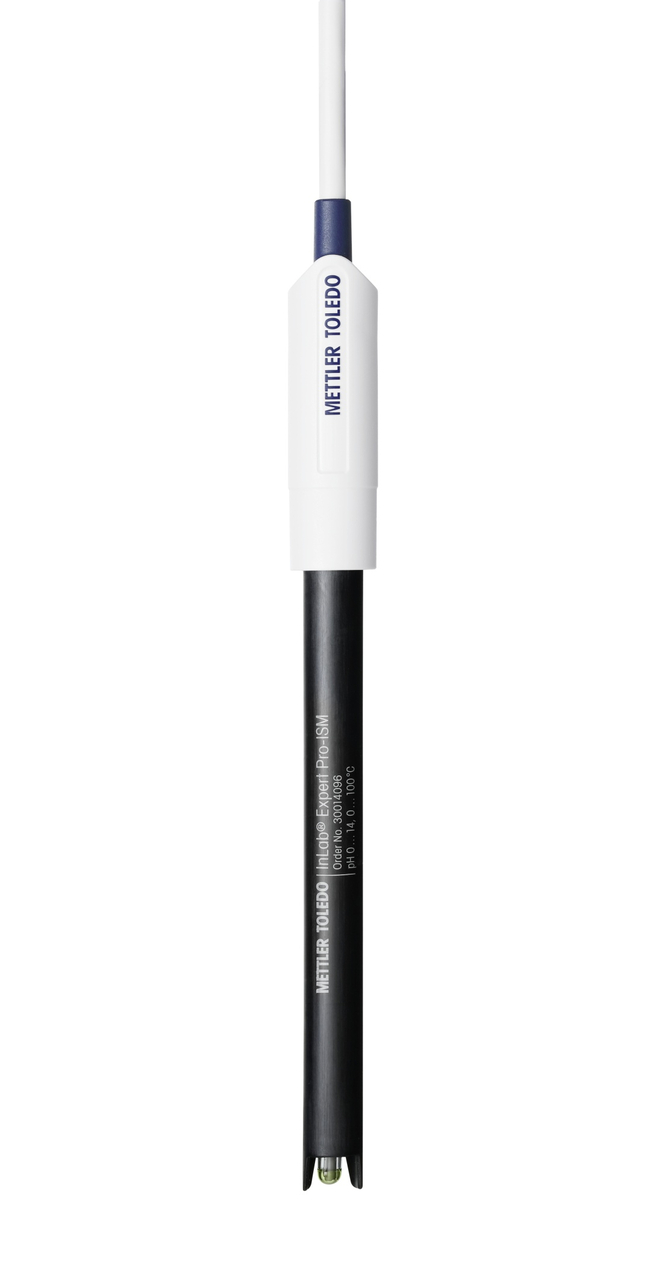

InLab™ Expert pH Electrodes

A combination pH electrode with PEEK plastic shaft for chemical and mechanical durability, and a fixed cable. Designed for use in a variety of applications.

Catalog Number	Connector Types	Includes	Length (Metric) Cable
FKS11394203	BNC, RCA	ISM Temperature Probe	1.2 m

Catalog number FKS11394203

View Price:

Connector Types:

BNC, RCA

Includes:

ISM Temperature Probe

Length (Metric) Cable:

1.2 m

Ideal for critical samples such as suspensions or samples of unknown composition. Mettler Toledo Expert Series pH and pH/ATC Combination Electrodes with open junction puts the reference electrode in direct contact with the measured medium, eliminating the possibility of contamination or blockage.

For use with METTLER TOLEDO SevenExcellence, SevenCompact and portable meters as well as other brands. Connection cables may be required.
Features a PEEK plastic shaft for harsh environments and requires no maintenance
Intelligent Sensor Management (ISM) electrodes capture and save calibration data, which is then automatically recognized by the meter once connected.
Capture electrode calibration and results with LabX software, designed for advanced data management and 21CFR part 11 regulatory compliance.
Compatible with InMotion Autosampler to automate measurement and cleaning of up to 303 samples.

Featured Applications

General Lab
Beverages
Waste water
Suspended solids
Environmental
TRIS compatible

Accessories & Care

Open Junction and non-refillable - no additional electrolyte required
Store in 3M KCl (51350072) or InLab Storage Solution (30111142)
Recommended for use with METTLER TOLEDO buffers (Sachets: 51302080, Bottles: 63056116)

Specifications

Connector TypesBNC, RCA

JunctionOpen

MaterialPEEK

pH Range0 to 14

Temperature (Metric) Operating0°C to 100°C

TypeCombination Electrode, Integrated Temperature Probe, Intelligent Sensor Management (ISM) Technology

Filling Solution TypeXerolyt Polymer

For Use With (Application)Emulsions, suspensions, effluent water and solutions containing Proteins and Sulphides

For Use With (Equipment)Fixed Cable to sensor

IncludesISM Temperature Probe

Internal ReferenceARGENTHAL

MembraneU Glass

ModelInLab Expert Pro-ISM

ProbeNTC 30 kilohm

Response Time<20 sec.

Temperature (English) Operating32°F to 212°F

Temperature (Metric) Range0°C to 100°C

Length (English)4.7 in.

Length (English) Cable47.2 in.

Length (Metric)120 mm

Length (Metric) Cable1.2 m

Diameter (English)0.47 in.

Diameter (Metric)12 mm

Unit SizeEA
