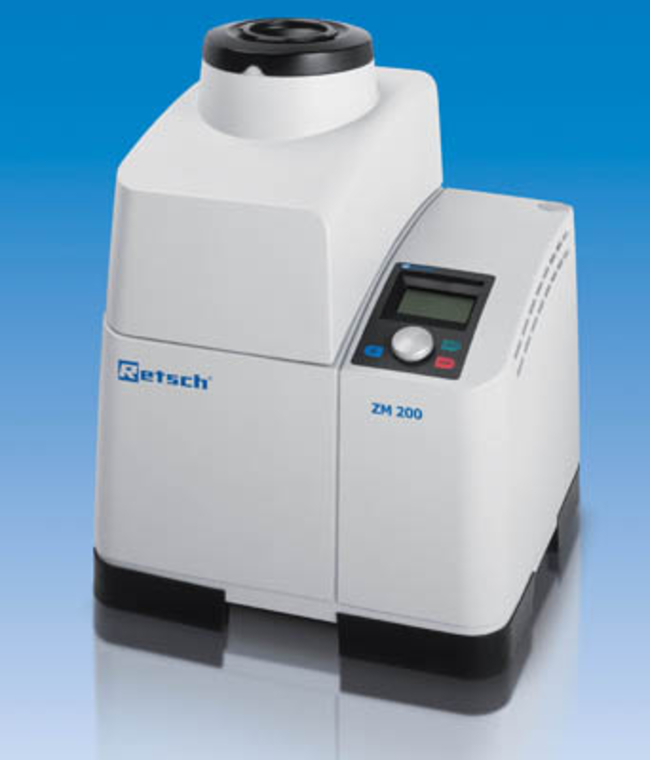

ZM 200 Model Ultra-Centrifugal Mill

Ensure the gentle preparation of analytical samples in a very short time. Retsch™ ZM 200 Model Ultra-Centrifugal Mills are versatile instruments that can be easily adapted to varying applications.

Catalog Number	Dimensions (L x W x H)
FKS10786671	515 x 410 x 365 mm

Catalog number FKS10786671

View Price:

Dimensions (L x W x H):

515 x 410 x 365 mm

Gentle and very rapid size reduction by pre and fine grinding in one run
Powerdrive with optimally matched frequency converter and 3 phase motor
Comfortable parameter setting via display and ergonomic 1 button operation
Wide range of accessories including various collection and feeding systems, rotors and sieves
Wide speed range
Patented cassette system for maximum sample recovery and easy cleaning
Easily exchangeable grinding and sieve inserts
Defined final fineness due to ring sieves with aperture sizes from 0.08mm to 10mm
Comfortable safety housing with automatic cover closure
Motor compartment and electronics protected against dust and material penetration
Ideal for fine grinding for sample preparation of activated charcoal, animal tissue, bentonite, bones, cereals, chemical products, coal, coffee beans, coke, collagen, corn, dried fruit and vegetables, dried larvae, drugs, electronic components, spices and straw etc.

Specifications

Product TypeUltra-Centrifugal Mill

Certifications/ComplianceCE Certified

Dimensions (L x W x H)515 x 410 x 365 mm

For Use With (Application)For Fine Grinding

Height (Metric)365 mm

Hertz50/60 Hz

Length (Metric)515 mm

ModelZM 200

Watts1300 W

Width (Metric)410 mm

Unit SizeEA
