Orion™ Single Junction Epoxy Bodied pH/ATC Triode™

Name: Orion™ Single Junction Epoxy Bodied pH/ATC Triode™
SKU: FKS10590533

Accurately measure pH and temperature together in just one electrode, with a built-in temperature sensor.

Change view

Catalog Number	Connector Types	Length (Metric) Cable
FKS10590533	BNC (Waterproof)	1.5 m
FIS13-642-250	BNC (Waterproof)	1.5 m

2 Options

Catalog number FKS10590533

View Price:

Connector Types:

BNC (Waterproof)

Length (Metric) Cable:

1.5 m

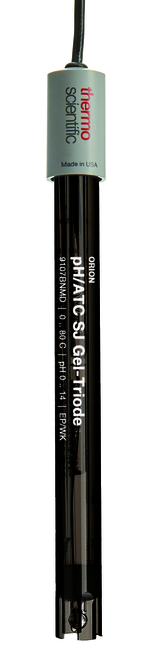

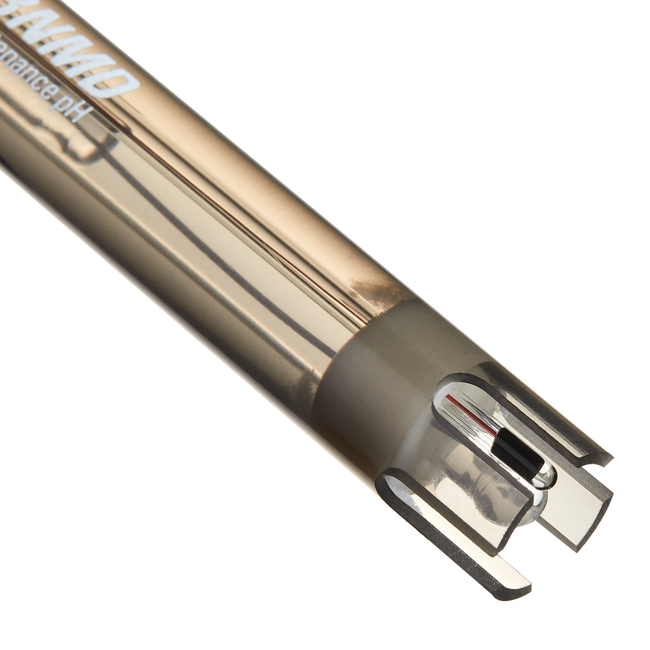

Thermo Scientific™ Orion™ Triode™ 3-in-1 pH/Automatic Temperature Compensation Electrodes are low-maintenance, gel-filled and come with a built-in ATC. They are engineered with an epoxy body for ruggedness and best suited for general purpose samples or for educational institutes where minimal maintenance is required.

Orion™ Single Junction Electrodes provide a reliable option for routine pH measurement. These silver chloride electrodes are available in a variety of styles and provide accurate measurements of typical samples.

Solutions required

Electrode storage solution

910001 pH electrode storage solution, 475 mL bottle

pH buffers

910168 pH 1.68 buffer, NIST traceable, 475 mL

910104 pH 4.01 buffer, color coded red, NIST traceable, 475 mL

910105 pH 5.00 buffer, color coded orange, NIST traceable, 475 mL

910686 pH 6.86 buffer, DIN standard, NIST traceable, 475 mL

910107 pH 7.00 buffer, color coded yellow, NIST traceable, 475 mL

910918 pH 9.18 buffer, DIN standard, NIST traceable, 475 mL

910110 pH 10.01 buffer, color coded blue, NIST traceable, 475 mL

910112 pH 12.46 buffer, NIST traceable, 475 mL

910199 Standard All-in-One pH buffer kit, includes pH 4.01, 7.00 and 10.01 buffers, 475ml each, pH
electrode storage solution, 475ml, and 12 mm electrode storage bottle

pH cleaning solution kit

900020 Cleaning solution A and C, 30 ml each. B and D, 60 ml each

Warranty period

6 months from date of purchase

Specifications

For Use With (Application)The Thermo Scientific Orion 9107BN Triode 3-in-1 pH/automatic temperature compensation probe has a low maintenance gel filled electrode with built-in ATC.For field or plant use.

For Use With (Equipment)Dual Star, Orion STAR A111, Orion STAR A121, Orion STAR A211, Orion STAR A221, Orion STAR A321, Versa Star

MaterialEpoxy

Temperature (Metric) Operating0°C to 80°C

TypepH/ATC Probe, BNC Waterproof Connector

pH Range0 to 14

DescriptionpH/ATC Triode

Diameter (English) Body0.47 in.

Diameter (Metric) Body12 mm

Diameter (Metric) Cap16 mm

JunctionWick

Length (English)4.7 in.

Length (Metric)120 mm

Reference TypeAg/AgCl

Temperature (English) Operating32°F to 176°F

Connector TypesBNC (Waterproof)

Length (Metric) Cable1.5 m

Unit SizeEA
