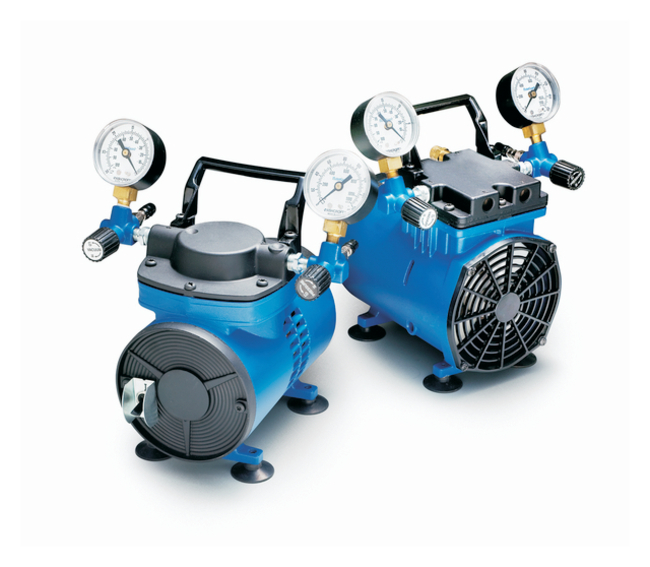

Chemical Duty Vacuum Pressure Pump
Decrease process filtration times. Chemical Duty Vacuum Pressure Pump supports high flow rates for faster pumping. Cast-aluminum pumphead, housing, and regulator with optional chemical-resistant internal components. Light weight and portable so they can be shared among workstations.
| Catalog Number | Voltage | Frequency |
|---|---|---|
| FKS10052433 | 220 V | 50 Hz |
Catalog number FKS10052433
View Price:Sign InSign in to see your account pricing. Need an account? Register with us today.
Voltage:
220 V
Frequency:
50 Hz
Decrease process filtration times. Chemical Duty Vacuum Pressure Pump supports high flow rates for faster pumping. Cast-aluminum pumphead, housing, and regulator with optional chemical-resistant internal components. Light weight and portable so they can be shared among workstations.
- High output pumps feature a piston-driven design for greater power and high flow rates to decrease process filtration time
- With optional chemical resistant head and diaphragm for use with corrosive chemicals, solvents and vapors
- Portable design allows for easy sharing between workstations
- Include a Millex™ FA50 filter for in-line moisture protection
- UL listed and CE marked
Specifications
Max. Vacuum813 mbar (24 in.Hg)
Shipping Weight (English)9 lb.
Shipping Weight (Metric)4.1 kg
Includes70cm of 0.25 in. dia. tubing and Millex™ FA50 filter
Electrical Requirements220 V 50 Hz
MaterialAluminum
Weight (English)9 lb.
Weight (Metric)4.1 kg
Flow Rate37 L/min.
Frequency50 Hz
Overall Height (English)7 in.
Overall Height (Metric)17.8 cm
Overall Length (English)8 in.
Overall Length (Metric)20.3 cm
Pump TypePressure Pump
Maximum Pressure2.45 bar
Voltage220 V
Unit SizeEA
