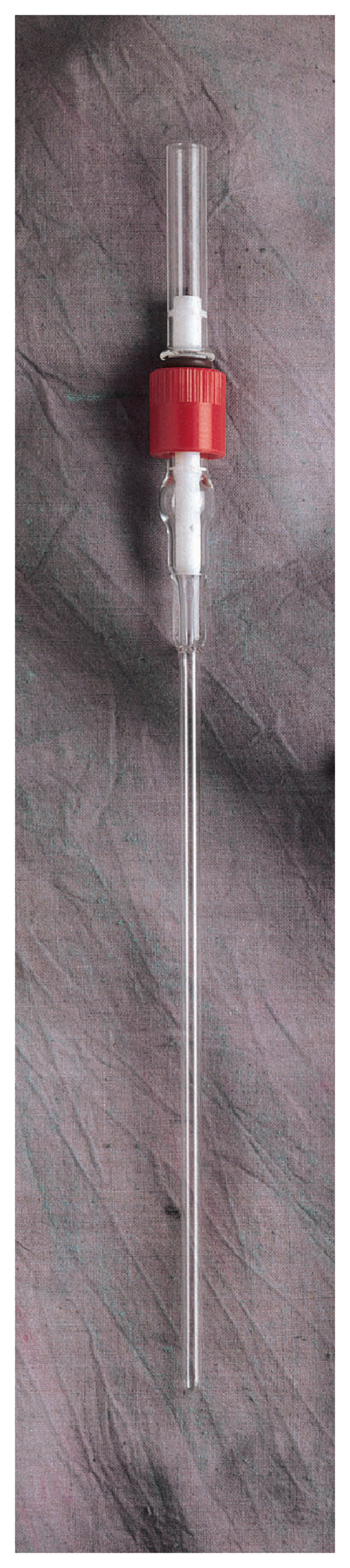

Kimble™ Kontes™ Brand Valved 5mm O.D. NMR Tubes

Ideal for handling volatile, air-sensitive and toxic samples

Catalog Number	Length (Metric)	Camber (Metric)
FISK897435-0000	177.8 mm	0.013 mm

Catalog number FISK897435-0000

View Price:

Length (Metric):

177.8 mm

Camber (Metric):

0.013 mm

Ideal for handling volatile, air-sensitive and toxic samples

Permit condensing of samples directly into NMR tube
Greaseless, Hi-Vac™ valve lets you recover samples, then reseal; no need to permanently seal off, as with conventional tubes
With glass tube and Viton™ O-ring for connection to a vacuum system
Wall thickness is 0.01475 in. (0.37mm); Wall variation and camber depend, in part, on tube length

Specifications

Camber (Metric)0.013 mm

Diameter (English) Outer0.19 in.

Length (Metric)177.8 mm

MaterialBorosilicate Glass

Diameter (Metric) Outer5 mm

Concentricity (English)0.001 in.

Camber (English)0.0005 in.

Field Strength>360MHz

For Use With (Application)Designed to improve sample handling during the investigation of volatile, air-sensitive, or toxic compounds

Length (English)7 in.

Thickness (English) Wall0.014 in.

Thickness (Metric) Wall0.38 mm

Unit SizeEA
