PYREX™ Graham Condensers with Standard Taper Inner and Outer Joints
PYREX™ Graham Condensers with Standard Taper Inner and Outer Joints

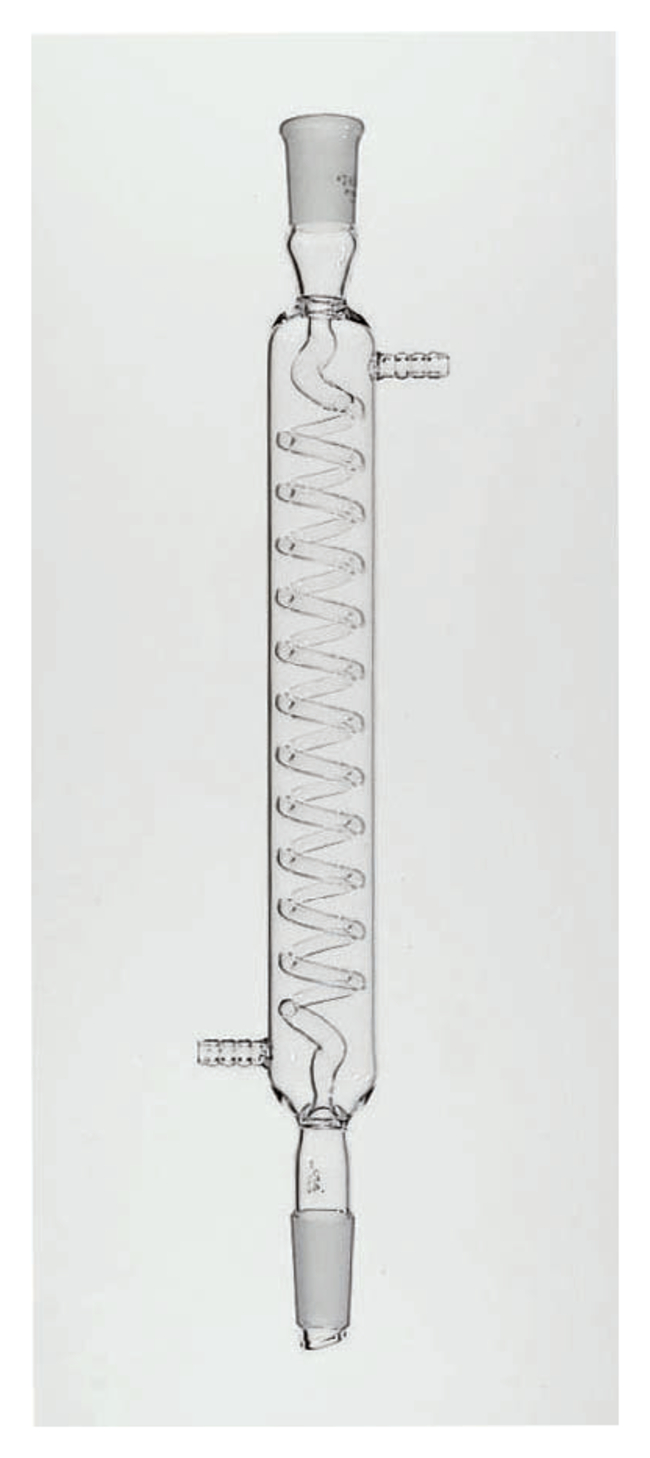

Actual product may vary

PYREX™ Graham Condensers with Standard Taper Inner and Outer Joints

For use in vacuum distillation
Have Questions?
Catalog NumberHeight (English)Length (English) JacketStandard Taper Joint No
FIS07-728A17.71 in.11.81 in.24/40
Catalog number FIS07-728A
View Price:Sign in to see your account pricing. Need an account? Register with us today.
Height (English):
17.71 in.
Length (English) Jacket:
11.81 in.
Standard Taper Joint No:
24/40
For use in vacuum distillation

This condenser has a high surface area per unit length of jacket. Primarily used in vacuum ­distillations. With the outer joint at the top and the inner standard taper joint at the bottom with a drip tip. The tubulation O.D. is approximately 10 mm.

Specifications
Diameter (English) Outer Jacket1.61 in.
Diameter (English) Outer Tubulation0.39 in.
Diameter (Metric) Outer Jacket41 mm
Diameter (Metric) Outer Tubulation10 mm
For Use With (Application)For vacuum distillations
Height (English)17.71 in.
Height (Metric)450 mm
Length (English) Jacket11.81 in.
Length (Metric) Jacket300 mm
Standard Taper Joint No24/40
MaterialBorosilicate Glass
TypeGraham Condenser
Unit SizeEA
