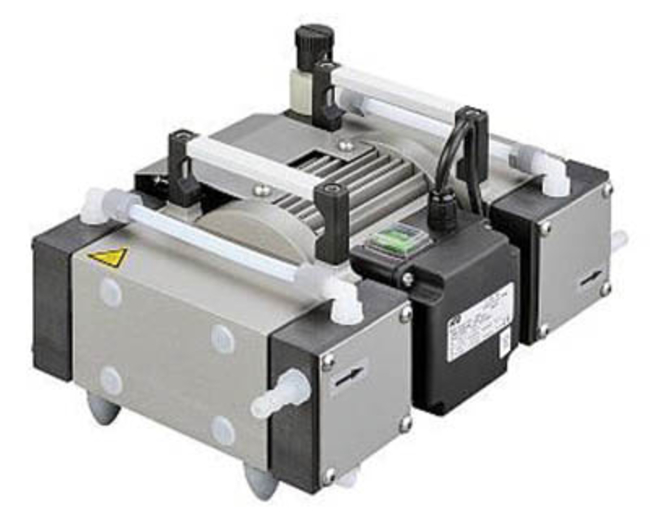

Welch Ilmvac Diaphragm Pump MPC 201T

Name: Welch Ilmvac Diaphragm Pump MPC 201T
SKU: FILFB65454

Handle corrosive and aggressive vapor without damage. Fisher Scientific™ Diaphragm Pump MPC 201T is chemically resistantant and ideal for applications involving aggressive solvents and acidic vapors. The diaphragms and all gas- contaminated parts are made from PTFE and PTFE compound.

Catalog number FILFB65454

View Price:

Three stage chemically resistant diaphragm pumps
Quiet operation
>10,000 hour service intervals
Low capital and spare parts costs
Wetted parts from PTFE or PTFE compounds
Self cleaning valve design
Simplest maintenance
Compact modular design
Oil free reducing down time and operating costs
Substantially lower operating cost than water jet vacuum pumps

Applications:

For oil free applications within the rough vacuum range
Chemically resistant for use with solvent and acid vapours
Economical and ecologically sound alternative to water jet vacuum pumps
Vacuum filtration
Vacuum concentration
Drying ovens
Molecular distillation

Specifications

Motor Speed2/2.2 m³h

Certifications/ComplianceCE marked, UL/CSA approved

Electrical Requirements230 V 50/60 Hz

Depth (Metric)26 cm

MaterialPTFE, PTFE Compoud

Wattage90 w

Weight (English)22.7 lb.

Weight (Metric)10.3 kg

Flow Rate2 L/min.

Frequency50/60 Hz

Overall Height (English)5.9 in.

Overall Height (Metric)15 cm

Overall Length (Metric)260 mm

Overall Width (English)7.8 in.

Overall Width (Metric)20 cm

Maximum Pressure<2 mbar

Voltage230 V

Unit SizeEA
