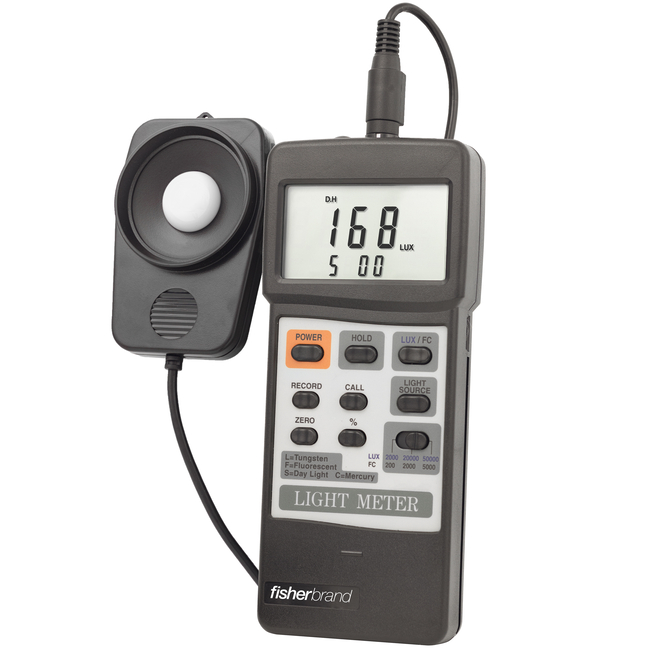

Traceable™ Dual-Display Light Meter
Large LCD shows separate readings for lux and foot-candles in 1.375 in. H digits, plus selected source (daylight, tungsten, fluorescent or mercury).
| Catalog Number | Display |
|---|---|
| CTL06-662-64 | LCD |
Catalog number CTL06-662-64
Price (SGD)
835.00
Each
Display:
LCD
Price (SGD)
835.00
Each
Large LCD shows separate readings for lux and foot-candles in 1.375 in. H digits, plus selected source (daylight, tungsten, fluorescent or mercury).
Three Ranges
- Measures lux from 0 to 1999, 2000 to 19,990 and 20,000 to 50,000 (with resolutions ranging from 1 to 100 lux)
- Measures foot-candles from 0 to 199.9, 200 to 1999 and 2000 to 5000 (with resolutions ranging from 0.1 to 10 ft.-c)
- Accuracy is ±4.5% of full scale reading
- Zero reference points for daylight, tungsten, fluorescent and mercury; can report percent differential from reference point
- Photodiode and color-correction filter provide cosine- and color-corrected measurements
- Push-button access to highest, lowest and average readings
- HOLD function freezes display to capture readings
- Optional Data Acquisition System (11-661-22) or Data Logger System (06-662-72) required to transfer readings to computer
Specifications
Accuracy (Foot Candle)±4.5% of full scale reading
Accuracy (Lux)±4.5% of full scale reading
Certifications/ComplianceWith individually serial-numbered ISO 17025 certificate indicating instrument traceability to standards provided by NIST™.
Height (Metric)3.2 cm
Includes2 in. Diameter (5.1cm) photocell, 40 in. (1m) cable, 9V alkaline battery, RS-232-C serial output for connection to IBM™-compatible computer or datalogger.
Length (English)7 in.
Length (Metric)17.78 cm
ModelDual Display
Range (Foot Candle)0 to 199.9, 200 to 1999 and 2000 to 5000
Range (Lux)0 to 1999, 2000 to 19,990 and 20,000 to 50,000
Resolution (Foot Candle)0.1 to 10 ft.-c
Resolution (Lux)1 to 100 lux
Width (English)3 in.
Width (Metric)7.62 cm
DisplayLCD
TypeLight Meter
Unit SizeEach
