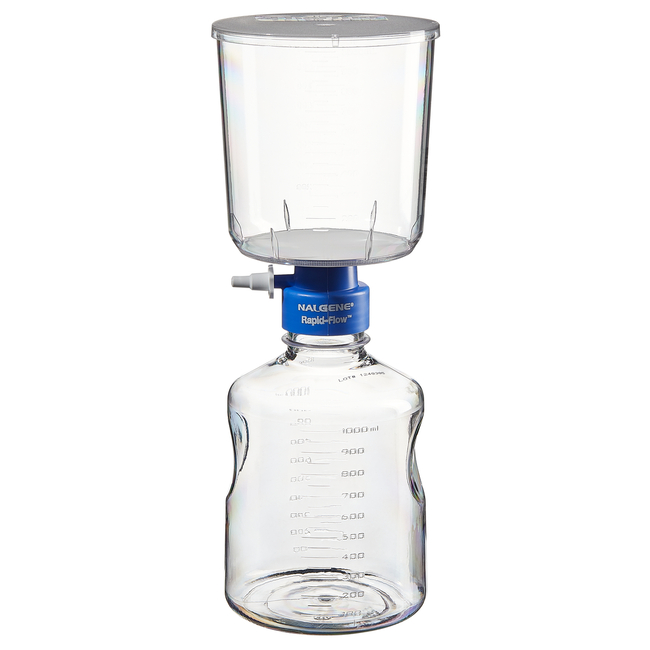

Nalgene™ Rapid-Flow™ Sterile Disposable Filter Units with PES, CN, SFCA or Nylon Membranes

Name: Nalgene™ Rapid-Flow™ Sterile Disposable Filter Units with PES, CN, SFCA or Nylon Membranes
SKU: 567-0010
Price: 421.00 SGD

Increase filtration efficiency. PES membranes and exclusive Rapid-Flow design provide fast flow rates and high throughput while defending against cell culture contamination.

Change view

Catalog Number	Pore Size	Material (Membrane)	Diameter (Metric) Membrane	Volume (Metric) Receiver
567-0010	0.1 μm	PES	90 mm	1000 mL
564-0020	0.2 μm	PES	50 mm	50 mL
FIS09-741-88	0.2 μm	PES	50 mm	50 mL
124-0045	0.45 μm	PES	50 mm	115 mL
565-0010	0.1 μm	PES	50 mm	150 mL
524-0020	0.2 μm	PES	50 mm	115 mL
FIS09-741-00	0.2 μm	PES	50 mm	115 mL
565-0020	0.2 μm	PES	50 mm	150 mL
FIS09-741-01	0.2 μm	PES	50 mm	150 mL
165-0045	0.45 μm	PES	50 mm	150 mL
FKS10034550	0.45 μm	PES	50 mm	150 mL
568-0010	0.1 μm	PES	75 mm	250 mL
568-0020	0.2 μm	PES	50 mm	250 mL
FIS09-741-04	0.2 μm	PES	50 mm	250 mL
FKS10421791	0.2 μm	PES	50 mm	250 mL
168-0045	0.45 μm	PES	50 mm	250 mL
566-0010	0.1 μm	PES	75 mm	500 mL
FIS09-741-202	0.1 μm	PES	75 mm	500 mL
566-0020	0.2 μm	PES	75 mm	500 mL
FIS09-741-02	0.2 μm	PES	75 mm	500 mL
FKS10229090	0.2 μm	PES	75 mm	500 mL
569-0020	0.2 μm	PES	90 mm	500 mL
FIS09-741-05	0.2 μm	PES	90 mm	500 mL
166-0045	0.45 μm	PES	75 mm	500 mL
FIS09-740-63E	0.45 μm	PES	90 mm	500 mL
FIS09-741-203	0.1 μm	PES	90 mm	1000 mL
FKS12686366	0.1 μm	PES	90 mm	1000 mL
567-0020	0.2 μm	PES	90 mm	1000 mL
FIS09-741-03	0.2 μm	PES	90 mm	1000 mL
FKS10411791	0.2 μm	PES	90 mm	1000 mL
167-0045	0.45 μm	PES	90 mm	1000 mL
FIS09-740-63C	0.45 μm	PES	90 mm	1000 mL
FKS10228340	0.45 μm	PES	90 mm	1000 mL
121-0020	0.2 μm	Cellulose Nitrate	50 mm	115 mL
FIS09-740-25A	0.2 μm	Cellulose Nitrate	75 mm	500 mL
450-0080	0.8 μm	Cellulose Nitrate	75 mm	500 mL
127-0020	0.2 μm	Cellulose Nitrate	75 mm	1000 mL
157-0020	0.2 μm	SFCA	50 mm	250 mL
FIS09-740-39B	0.45 μm	SFCA	50 mm	250 mL
156-4020	0.2 μm	SFCA	75 mm	500 mL
FIS09-740-28D	0.45 μm	SFCA	75 mm	500 mL
162-0045	0.45 μm	SFCA	90 mm	500 mL
158-0020	0.2 μm	SFCA	75 mm	500 mL
161-0020	0.2 μm	SFCA	90 mm	1000 mL
FIS09-740-43B	0.45 μm	SFCA	90 mm	1000 mL
FIS09-740-31F	0.2 μm	Nylon	50 mm	150 mL
FIS09-740-24A	0.2 μm	Nylon	50 mm	250 mL
FIS09-740-32	0.2 μm	Nylon	75 mm	500 mL
FKS10578471	0.2 μm	Nylon	75 mm	500 mL
163-0020	0.2 μm	Nylon	90 mm	500 mL
151-4045	0.45 μm	Nylon	75 mm	500 mL
FIS09-740-32B	0.45 μm	Nylon	75 mm	500 mL
FIS09-740-26A	0.2 μm	Nylon	75 mm	500 mL
164-0020	0.2 μm	Nylon	90 mm	1000 mL
FIS09-740-46	0.2 μm	Nylon	90 mm	1000 mL
154-0045	0.45 μm	Nylon	75 mm	1000mL
FIS09-740-26B	0.45 μm	Nylon	75 mm	1000mL

57 Options

Catalog number 567-0010

Price (SGD)

421.00

Add to cart

Pore Size:

0.1 μm

Material (Membrane):

PES

Diameter (Metric) Membrane:

90 mm

Volume (Metric) Receiver:

1000 mL

Price (SGD)

421.00

Add to cart

Increase filtration efficiency. Thermo Scientific™ Nalgene™ Rapid-Flow™ Disposable Filter Units feature the exclusive Rapid-Flow support column design, providing fast flow rates and high throughput. The last line of defense against cell culture contamination—Nalgene Rapid Flow Filter Units and Bottle Tops are the best choice for the filtration of cell culture media, serum, additives and buffers. Some products on this page are ACT Labeled by My Green Lab to enable data-based sustainable product purchasing decisions (see Full Specifications in the product table for item participation).

Available in PES, CN, SFCA and Nylon membranes. Devices are color coded according to membrane.
Devices feature the fastest flow rate and lowest clogging of comparable alternatives
0.1um PES available for mycoplasma protection
0.2um PES devices are stem cell and mouse embryonic assay (MEA) tested
Non-pyrogenic and endotoxin free - Rapid-Flow filter units meet the most rigorous testing standards for any vacuum filtration unit.
Available with Fit for Purpose Sterile documentation
Some products on this page are ACT Labeled by My Green Lab to enable data-based sustainable product purchasing decisions (see "Full Specifications" in the product table for item participation)

Specifications

ACT LabelYes

DisposableSingle-use

Material (Membrane)PES

Pore Size0.1 μm

SterilitySterile

No. per Case12

No. per Pack12

TypeFilter Unit

Volume (Metric) Receiver1000 mL

Volume (Metric) Upper1000 mL

Diameter (Metric) Membrane90 mm

Fit for PurposeSterile

Unit SizeEA

Frequently asked questions (FAQs)

What is the maximum volume that I can run through the Nalgene Rapid-Flow Sterile Disposable Filter Units with PES, CN, SFCA or Nylon Membranes?

The filters included with Nalgene Rapid-Flow Sterile Single Use Vacuum Filter Units are not specifically rated for a maximum volume that may be filtered. In many cases it depends on the specific application of the filter unit and would require testing beyond the volume of the receiver. Signs of the filter clogging, such as a decrease in filtration rate, would likely indicate the need for replacement.

I am using a Nalgene Rapid-Flow Sterile Disposbable Filter Unit and my solution is taking a long time to filter. Do you have any recommendations to improve filtering?

We recommend using glass fiber prefilters for filtration of solutions with high viscosity or especially high particulate load. The glass fiber prefilters are available as an optional accessory and bundled with select Thermo Scientific Nalgene Rapid-Flow filter units. The prefilters enable a higher volume to be filtered before significant flow decay by trapping and preventing the larger particulate matter from entering the final filter membrane. Simply place one prefilter on top of the membrane bonded inside the unit, wet slightly to hold in place, and proceed with filtration as usual.
