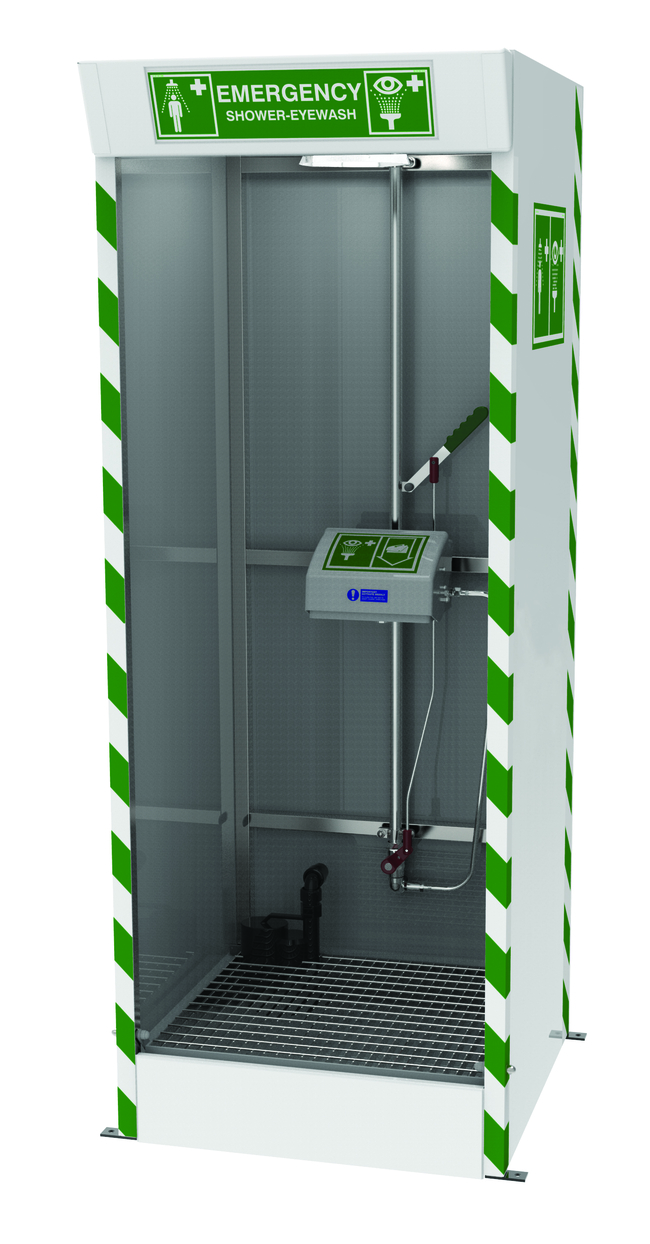

Hughes All-In-One Emergency Cubicle Shower with Strip Screens

Features:

• ANSI-compliant combination cubicle shower and eye/face wash helps prevent overspray and is activated by hand upon entry
• Stainless steel hollow section frame enclosed in GRP sheeting with stainless steel pipes for corrosion resistance and extended life
• Exterior sheeting includes universal pictogram signs and green and white safety stripes
• Optional submersible sump pump incorporates an integral float switch, which provides automatic pump control in the form of a low level cut out to prevent the risk of running dry—120V, 60 Hz suitable for general purpose areas
• Mounted on the inside of the cubicle for maximum benefit, the eye/face wash with high, ANSI-compliant flow rate includes aerated diffusers with fine mesh strainers and an individual flow controller which provide a soft, scrubbing action to the eyes and face.
• Covered bowl ensures that the eyewash nozzles and bowl remain clean and free from contamination at all times—no dust covers needed.
• Activate by simply pulling down the cover.
• Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident.
• Specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure the harshest environments and site conditions.
• Low operating torque to open valve offers reliable, easy on/off operation when emergencies occur.
• Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure.
• Includes an inspection record tag for recording test and service history.
• Integral drain sump and strip screens reduce the risk of surplus contaminated water outside of the cubicle area
• ANSI compliant eye/face wash with acrylic capped ABS lid protects against dust and debris
